Saturday, September 30, 2017

Bike Friday Haul-a-Day Review

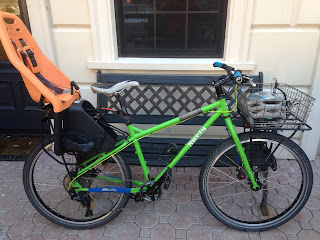

This summer, we purchased Bike Friday Haul-a-day to replace Surly Troll for the tasks such as grocery shopping and carrying our daughter. This was our Surly Troll:


My wife's major complaints are:
  • The bike was unstable with our daughter (with or without weight in the basket).
  • The bike was hard to ride on.  (With a child carrier in the back, you can't throw your leg over to ride the bike.)
So I spent some time to search for bikes with the following criteria:
  • Can carry our daughter (about 40 lbs curently) easier than Surly Troll. Troll is a great bike, but with a child on the back, the bike felt hard to handle.
  • Can carry groceries and other items easier. We put a large basket on the front of Troll, but that made the bike handling really unstable. Even with Velo Orange's stabilizer, my wife was really unhappy with the bike's handling.
  • Has a lower top tube to allow easier step through.
  • Steel is preferred as the material. (Just my personal preference.)
  • Preferred price range: $1000-$1200
By the way, we own a bike in Japan that pretty much covers all the criteria (except it is aluminum) and it costs less than $500 (child carrier and basket are not included in the price). https://www.bscycle.co.jp/greenlabel/totebox It has a 3-speed internal gear and a dynamo hub + head light, both of which are not the greatest things, but do the job for most of the casual rides.

Unfortunately, in the US, options are pretty limited and the price range is much higher. What I came up with were:
  • Xtracycle Edgerunner 2016: $1999
  • Surly Big Dummy: $2,099
  • Yuba Mundo $999
  • Yuba Boda Boda $1,499
  • Kona Ute: $1,499
  • Trek Transport: Discontinued
  • Bike Friday Haul-a-day: $1,250
Among these choices, Yuba, Kona, Trek Transport and Surly Big Dummy just felt too big for us. We live in a small apartment and put the shopping bike and my commuter bike in the landlord's garage. We have been invading this space more and more, and I felt like getting one those bikes might be the tipping point. Edgerunner seemed like a good option, but the price was pushing our limit.

So we were torn between Yuba Boda Boda and Bike Friday. Our local bike store had a red Boda Boda on the floor and we were seriously considering. But at the end, we decided to go with Bike Friday for the following reasons:

- We just didn't want a red bike. (I have a red Eddy Merckx, and my wife says the only red bike in our house should be Merckx.)

- We like small-wheeled bikes. We ride them when we visit Japan and we are comfortable with them. A smaller rear wheel would put the child carrier lower, and lower the center of gravity, which makes the handling of the bike easier.  I also had a suspicion that our daughter would love it, too, because she would be able to climb to the seat by herself (and I was right!).

- It's a steel bike made in the USA. What's not to love about that?

So we decided to get the Bike Friday. My favorite local bike store didn't carry them, but the owner was happy to take the order. All the details of the bike were submitted to Bike Friday directly through the online form on their website and follow-up emails (I had some strange requirements e.g. no saddle, no derailleur, and no pedals), but overall, it was a smooth process. It was supposed to be a 2 month wait, but luckily, there was a cancellation or something and they delivered the bike within a month. And this (mostly) is what we received:


So it's been about three months and it's been pretty good. My wife is definitely happier riding it than the Troll and my daughter seems happier on the seat, too. Here are my overall observations. I start with the positive ones.

What we like about the bike about:

Stability -- The bike is very stable, even with a lot of loads. The basket amazingly does not affect the handling of the bike, because it is attached to the frame. Which is probably the best thing about the bike.

Ride -- The bike rides nicely, even with the small wheels. I owned a regular Bike Friday for a bit but we didn't like the ride. The frame and wheels felt so stiff. This bike feels much better, probably because of the long wheel base and small-diameter tubes in the rear stays. I chose 2.0 inch Schwalbe Big Apple as the tires, which should help the ride, too. Oh, I also put Brooks B17 Flyer saddle (the one with springs) and it is the most comfortable saddle on earth (at least for me), so maybe that is just that.

Step-through -- As I said above, Being able to step-through the bike is a really nice feature, when a kid is on the back of the bike. This bike probably has the lowest step-through among the cargo-bikes around.

What we are not sure about the bike:

Rack -- This may be a bit personal, but the rear rack would have been better if it 1) were a bit lower and/or 2) accommodates Yepp child carrier directly. Putting Yepp is a pretty common use case with cargo bikes and some brands offer direct compatibility. Looking from the side, there seems to be enough clearance to put the carrier directly, and I really wish I could do that, to save the weight and to lower the center of gravity.

Top Tube Connection -- The connection of top tube is secured by two screws. After about 2 months of riding the bike, I realized the bike started handling a bit funny. I thought the head set was loose, but it wasn't, and I couldn't tell what was wrong. Later, I realized that the saddle swung to the side while turning, and realized that it was those screws being loose. I tightened them and the problem was gone. Just like the problem with the stand (below), it is probably just a thing that you need to pay attention when it is assembled, but it is something every owner should be aware of.

What we didn't like the bike about:

It is slow -- The bike is slow. There is no way around it. I think it is mostly the weight and the position. (The bike is setup for my wife, who prefers a much higher position than me.) And maybe the drag by the child career? (But I didn't notice the difference when I was riding the Troll.) My commute is 7 miles  in NYC, which is mostly flat with some rollers including a bridge. It takes about 30mins with my single speed bike (with really slow puncture resistant tires), but it takes at 35-40mins with this bike.

Shifter -- We chose 1x8 as the set up, and it came with Microshift's grip-shifter, which was super crappy. It required a lot of torque to shift every time and it sometimes got stuck in the middle. It was too annoying and dangerous, I immediately replaced the shifter with a simple thumb shifter, and the difference was night and day. (I also changed the grip while I was at it... 😄)





Stand -- The bike comes with a stand but we had three minor annoyances with it: 1) The rubber caps on the tip of the stand came off immediately after we started riding. I think by day 2, we lost them both. The stand is reasonably wide (which is a good thing, I guess) and I feel like those tips naturally get hooked by many things, so some extra device is needed to secure the rubber caps. 2) The legs can be separated with screws. It is probably just the screws were not tightened enough originally, but one of the legs came off when I hooked to something while pushing the bike, just on the 2nd day. It is nice that they are adjustable, but I feel like there could be a securer way to accommodate that. and lastly 3) The stands are pulled up by a rubber band and I don't think it is pulling the stand well enough. I need to push the stand up with my food every time I push it up. So the rubber band is there so that it won't come down, while you are riding, but not really to pull it up. It is probably by design, but I feel like there could be a better way.













Conclusion

In general, we are happy with the bike and my complaints above may be moot points. I would recommend the bike to anyone with a similar situation but would bring up the observations above.

Also if you don't mind a bigger wheel and prefer a cheaper price, Yuba seems like a good option. On the other hand, if you prefer the small rear wheel / low step-through and don't mind a higher price, Edgerunner (or Edgerunner Swoop!) seems like a great option.

Tuesday, October 13, 2015

Gravel Bike Part 2: Components


I finally built up the gravel bike.

Drivetrain
Crankset: Sugino XD2 Triple Crankset with 2 chainrings + Salsa Chainguard
Bottom Bracket: Shimano
Front Derailleur: Shimano Deore XT FD-736
Rear Derailleur: Shimano Deore XT RD-M737
Cog: SASH 7 Speed 13/32
Cables and Hosing: Yokozuna Reaction
Chain: Wipperman 8SX
Pedals: Crank Brothers Eggbeater

I used 7-speed drivetrain components, as I thought they would be more reliable in the hash condition that grave races e.g. Trans Iowa offers, because of the larger cog spacing. I also happened to like the looks of the older Shimano components...



The crankset is a used Sugino triple cranksets that I got from eBay (as most other parts are). I only need 42T at most on this bike, so I went with 2 chainrings (Rivendell-style). I used this crankset for TIV9 (2013) on a different bike (Soma Double Cross) and it worked great, so I was saving it for this bike.

I like Wipperman chains, as they seem to last longer in my experience. Also I clean chains off the bike often, so their re-usuable connecting link comes handy.

Yokozuna's housings are much stiffer than other brands', so installation is a bit harder (but not really). Once installed, they should create less frictions.

Fizik's bar tapes are the best I know, but I will deeply regret that I chose white my "gravel" bike.



Cockpit
Headset: Chris King GripNut
Brakes: Paul Touring Canti
Brakes: Paul Touring Canti
Brake Levers: Cane Creek SCR5
Shifters: Shimano 600 SL-6400
Stem: Nitto Pearl 80mm
Handlebar: Nitto Dirtdrop RM-013 48cm
Handlebar Tape: Fizik Performance Tacky Bar Tape (3mm)

The handlebar, stem, and seatpost are all Nitto, and they are the amazingly beautiful. I am used to Compagnolo's brake hoods, so put similarly-shaped Cane Creek SCR5. The campy-style cable release pins are especially handy. I immediately noticed, though, that Cane Creek's brake hoods feels less comfortable on my hand (firmer and tiny bit bigger).

Brakes
Brakes: Paul Touring Cantilever Brakes

People have different opinions about Canti vs Disc for gravel bikes, but I followed suggestions by Guitar Ted (http://g-tedproductions.blogspot.com/2012/10/gravel-bikes-canti-or-disc.html) and Ari, and went with canti's. I don't use wide-profile canti brakes, as they are much weaker than the narrow profile brakes (in general) and has a narrow range of adjustment (http://velo-orange.blogspot.com/2012/08/breaking-it-down-grand-cru-cantilever.html). Rim brakes give me more options when I want to swap wheels, too.

Seat
Saddle: Brooks B-17 Flyer
Seatpost: Nitto S-65 27.2mm 250mm

B-17 Flyer is the most comfortable saddle I have used. When I did TIV9, I was on this saddle for 28hours or so and didn't have any problems. It's one of the parts that I would like to swap out in the future to cut the weight, but for now it stays on the bike.

Wheels
Hubs: Phil Wood 32h
Rims: Hed Belgium 32h
Tires: Clement X'Plor MSO 120TPI (40mm)

The wheelset is an odd ball: a strange mix of modern and classic looks, but functionally, they work great. With 32H spokes (straight 14 gauge, too), they are definitely over-built for me but whenever I hit a pothole, rock, etc, I appreciate that I have bombproof wheels. The Phil Wood takes 7-speed freewheel, not a cassette, and pretty much symmetrical -- I used to firmly believe that the symmetrically-built rear wheels are better (not so much now). The hubs feel so unnecessarily heavy, but it gives me a sense of security. These wheels are also in the list of potential parts to be swapped in the future, if I want to cut the weight. (A wheel builder at HED told me my wheelset is definitely overbuilt ("they will last for your life") and I could go with 20H/24H spokes even for Trans Iowa.)

Clement MSO is supposed to be one of the best gravel tires according to, again, Guitar Ted (http://g-tedproductions.blogspot.com/2012/03/box-o-goodness-part-ii.html) and Ari. So I followed their suggestions. I have tried a few other tires -- Challenge Gravel Grinder, WTB Nano 40C, Schwalbe Marathon Mondial, and Explore (discontinued for a long time). I am not really educated enough to tell the difference between the tires but I tend to agree. I am liking WTB Nano, too, though.

Accessories
Fenders: Velo Orange 700c Zeppelin 52mm
Bottle Cages: King Stainless Steel Cage

The fenders are only for the late Fall/early Spring rides (and the photos). They look great and (hopefully) will keep my feet (and bike) dry, clean and warm when the roads get nasty. They are pretty sturdy but get noisy if I go to local trails (Green Lakes, Morgan Hill, etc).



Friday, October 9, 2015

Gravel Bike Part 1: Frameset




A custom frameset built by John Fitzgerald (http://www.fitzcyclez.com//). This is my second custom frame (the first one by a single-person custom builder... I own a custom Serotta CXII, a tri bike, that was built by multiple people at Serotta). This bike was built primarily for gravel races, especially Trans Iowa, and for general fun rides and light touring.

I used the following bikes as the starting point and added a few personal requirements based on my experience at TIV9:
Specifically, my requirements were as follows:
  • Extra tire clearance (at least 40mm with fender, if not 45mm)
  • Single speed option (sliding drop out or horizontal dropout)
  • Extra bottle cage bosses on the bottom side of the down tube, if there is an enough space.
  • Low BB
  • Cantilever brake bosses
  • Extra bottle cage bosses on the fork
  • Rack & fender eyelets
  • Accept 1" threaded (quill) stem
  • 27.2mm seat post preferred
  • Lugged frame
  • 700c wheels

I was searching for the right frame builder during the winter, but all the frame builders that I found online were out of my budget (less than $2,000 for the frame + fork with lugs), until I found John's website (http://www.fitzcyclez.com/). I immediately liked his style, experience, and pricing. I emailed him on March 5th 2015 and I placed an order on the next day after just on email exchange. I filled in his surveys to determine the right geometry and materials (tubes), and we exchanged many emails to follow up. It was very clear that he pays attention to all the details and experienced enough to digest all the information to determine the optimal frameset for a given condition.
After a few revision, this was the final geometry:


Given my "riding style" (probably it just means I am not a super strong cyclist/sprinter) and height/weight (5'7" and 140-145lbs), John decided that following tubes specs:
  • TT: 28.6 True Temper OX Platinum (.7/.4/.7)
  • DT: 31.8 True Temper OX Platnium (.7/.4/.7)
  • ST: 28.6 True Temper S3 (.5/.4/.6)
  • HT: 31.8 True Temper OX Platinum: (.9)
  • SS: Dedacci
  • CS: Dedacci
  • Lugs: Pacenti
I was personally super excited to see S3 for ST -- given the plenty of use of OX and S3, this was going to be one of my lightest frameset! (Not that I measure the weight of my bikes...)
Oh, also you've got to love his "Mithril" decal!


One of the nice things about having a single-person custom builder building a bike for you is that you sometimes get photo-updates:






The frame came in on July 1st.


In the next post, I will describe how I built up this frameset.
